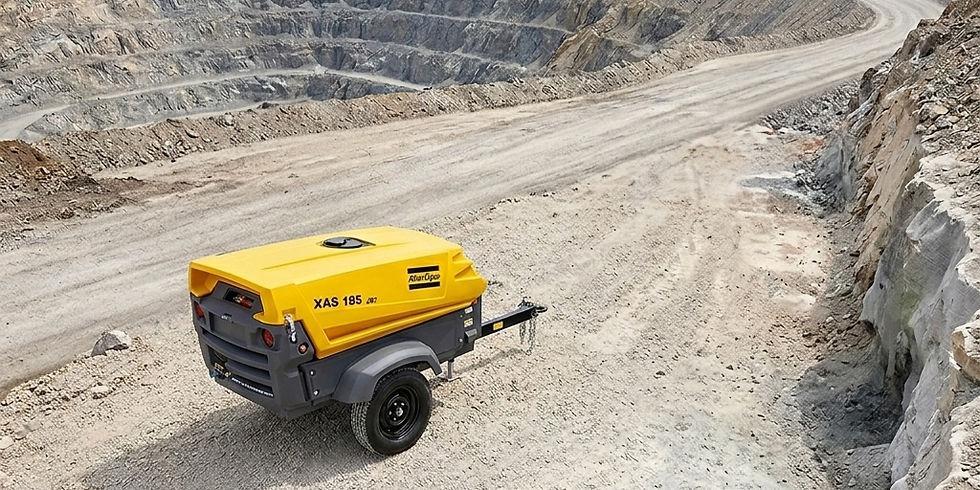

AIR COMPRESSOR, DIESEL TOW-BEHIND

• BRIEF DESCRIPTION:
• Need high-volume compressed air for demanding job site applications? This 185 CFM diesel tow-behind air compressor is designed for construction, utility work, sandblasting, pavement projects, and other heavy-duty applications that require a reliable source of compressed air. Delivering 185 CFM at a normal working pressure of 100 PSI, this compressor provides the air capacity needed to operate larger pneumatic tools and equipment.
• Mounted on a trailer for easy transportation, this unit is commonly used by contractors, municipalities, utility crews, and industrial maintenance teams. Its compact towable design allows it to be moved easily between jobs while providing dependable performance throughout the workday.
• BEST USED FOR:
• * Operating pavement breakers and jackhammers
• * Sandblasting and surface preparation projects
• * Running multiple pneumatic tools simultaneously
• * Utility and underground construction work
• * Pipeline and road construction projects
• * Industrial and commercial maintenance
• * Concrete demolition applications
• * Directional drilling support equipment
• * Large-scale construction and job site air supply
• SPECIFICATIONS:
• Actual Free Air Delivery: 185 CFM
• Normal Working Pressure: 100 PSI
• Maximum Unloading Pressure: 125 PSI
• Minimum Working Pressure: 58 PSI
• Outlet Valve Configuration: Two outlets with claw couplings
• Sound Level: 76 dB(A) measured at 23 feet under normal operating conditions
• Length: 125 inches
• Width: 60 inches
• Height: 57 inches
• Dry Weight: 2,240 lbs
• Operating Weight: 2,400 lbs
• Tire Size: F78-15
• Recommended Tire Pressure: 50 PSI
• FUEL INFORMATION:
• This air compressor is powered by a diesel engine. The machine will arrive with a full tank of fuel and there is no upfront fuel charge.
• Customers are responsible for refueling the unit before returning it. If it is more convenient, we can refuel the machine upon return; however, our fuel rates are typically higher than most local fuel stations.
• TRANSPORTATION:
• This compressor is trailer mounted for easy transport between job sites. It uses a standard 2-inch ball hitch and is equipped with a 4-way flat trailer lighting connection.
• With an operating weight of approximately 2,400 lbs, customers should ensure their tow vehicle is properly rated for both the trailer weight and any additional equipment being transported. The manufacturer recommends a maximum towing speed of 50 MPH.
• For contractors and crews needing a dependable source of high-volume compressed air, this 185 CFM diesel tow-behind compressor provides the performance and mobility required for demanding construction, demolition, and industrial applications.
